Water Resonance System (WRS)

Kaijo’s Water Resonance System (WRS) is a water treatment technology that oscillates powerful uniform ultrasonic waves throughout the cleaning bath to provide an optimum cleaning solution. The WRS and WRS-F systems each consist of three models that function across different temperature, power and liquid capacity ranges (see specification tables below for details).

The Water Resonance System significantly improves the effectiveness of Kaijo’s ultrasonic cleaning systems. When used with Kaijo’s turnkey systems, the WRS conditions the water to improve bubble formation throughout the entire cleaning tank  instead of staying concentrated over the transducer. Ultrasonic cleaners using the WRS provide faster and more uniform cleaning. The system also received the Acoustical Society of Japan – Engineering & Development Award for 2007. – For more information read “How Kaijo’s Water Resonance System Improves Performance of Ultrasonic Cleaning Systems“.

Key Features of the Water Resonance System Include:

Model 4007A
Model type F 11009A

Acoustical Society of Japan -Engineering & Development Award for 2007.



W R S Specifications

WRS Model
40005
40006
40007
40008
Model Name
Water Resonance System
Control Method
Auto Adjustment Mechanism
Power Source
AC200-230V 3 phase 50/60Hz
AC100-115V single phase 50/60Hz
AC200-230V 3 phase 50/60Hz
Liquid Temperature
10-70
10-30
Cleaning Water
Water, Hydrocarbon
Water, DIW
Hydrocarbon
Flexible Hose
Hose Nipple(SUS304)R1/2,19mm(inner diameter)
Ambient Temperature
0-40
Humidity
0-80%(No dew condensation)
Outer Dimensions (WxDxH) in mm
172x511x295
172x508x295
172x508x295
Main body 170x390x270 Function box:290x100x270
Weight
16kg
17kg
Main body:10kg Function box 8kg



W R S – F Specifications

WRS-F model
11009C
11010C
11011C
Processing Amount
1200L/H
300L/H
2400L/H
Applicable Liquid
Pure Water (DIW) 10-40
Required Air
100nL/min
Pressure Loss
<500KPa
Outer dimensions (WxDxH) in mm
300x600x1000
300x350x465
500x600x1000
Option
Type A: DO meter, Digital type flow meter and Water leak sensor.
Type B: Float type flow meter.

Auto Chaser

The Auto Chaser Horn Type Ultrasonic Cleaner Powerful 19.5kHz ultrasonic cleaning system

Benefits of the Auto Chaser Horn Type Ultrasonic Cleaner:

Features:



Various horn types

Combination number

C-5281

C-6281A

Generator model
5271
6271
Max output power
5271
6271
Transducer
5281
6281A
Horn type
Standard or customized type
Max output power
300W
600W
Operating Frequency
19.5kHz
Power source
AC100V 6A
AC200V 7A
Generator Dimensions (WxDxH) in mm
200x430x305
220x504x341
Transducer Dimensions (WxDxH) in mm
110x332x130
200×354.5×154
Accessories
Remote short plug, spanner or motor wrenches x 2 pieces
Other functions
Amplitude control circuit, Oscillation level indicator, Remote control connector (Remote consent), Protection circuit (temperature rise thermo-lamp, over-current warning lamp),Ultrasonic wave test switch.
Ambient temperature
0-40 deg C
Generator weight
12.5kg
18.7kg
Transducer weight
5kg
7.2kg
Max amplitude at horn tip
20um p-p



Horn type combination

Combination Number

Generator model

Transducer model

Frequency

Power

Power
source / capacity

C-5281
5271
5281
19.5kHz
300W
AC100V 6A
C-5381
5371
5381
27.5kHz
300W
AC100V 6A
C-6281A
6271
6281A
19.5kHz
600W
AC200V 7A

Sono Cleaner

Integral type of generator and cleaning bath with silent, easy-to-use design. The tough design suitable for office and industrial use.

Sono Cleaner-100D
Sono Cleaner-200D
Sono Cleaner-400D
Sono Cleaner Baskets
Sono Cleaner Baskets
Sono Cleaner Control Panel

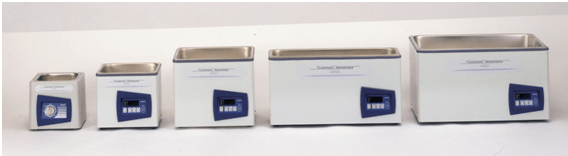

Sono Cleaner Line Up

SONO CLEANER D SERIES

SONO CLEANER D SERIES

Kaijo’s Sono Cleaner D Series generator and transducer have all been designed and combined into one unit for easy operation. The newly designed BL transducer element has low noise and generates powerful ultrasonic waves in liquid that provides excellent cleaning power.

Benefits of the Sono Cleaner D Series generator and transducer:

Features:

Generator Model *1

CA-34800 (100D)

CA-44800 (200D)

CA-44800L (200DL)

CA-54800 (400D)

Outer Dimensions *1(WxDxH) in mm
247 x 209 x 234
324 x 264 x 289
530 x 163 x 289
530 x 325x 306
Inside Bath Size (WxDxH) in mm
226 x 188 x 100
299 x 238 x 151
498 x 143 x 153
498 x 298 x 150
Bath Capacity
3.9L
9.6L
7.4L
20L
Drain
1/2inch
1/2inch
1/2inch
1/2inch
Timer
Digital 99 minutes
Digital 99 minutes
Digital 99 minutes
Digital 99 minutes
Heater
Digital control 100W
Digital control 200W
Digital control 200W
Digital control 400W
Nominal Oscillation Frequency
38kHz
Power source *2
AC100V
1.8A
AC100V
4.5A
AC100V
4.5A
AC100V
10A
Weight
4.3kg
7.7kg
8.3kg
16.2kg

*1: Projection area is excluded.

*2: Various power sources are customizable.

Please consult with Kaijo Shibuya America for more information on details.

Convenient attachments

Stainless steel tray
Cover

Optional

Optional inner trays with and without hole are available for more efficient cleaning

Inner tray(option)
Detergent for Ultrasonic Cleaning

Sound Pressure Meter

The Kaijo 19001D Ultrasonic Sound Pressure meter is a cleaning management tool that allows a user to evaluate relative sound pressure in an ultrasonic cleaning tank.The probe is available in quartz or stainless steel.

Key Features of the Sound Pressure Meter include:

Sound Pressure Meter Specifications

Model
19001D
Frequency Range
14.5kHz to 2.0MHz
Power Source
AC100v or AA Battery x 4
Current
3W
Dimensions
(WxDxH) in mm
100 x 182 x 34
Sensor Length
410mm (Cable: 1.5M)
Weight
Main Unit: 390g (without battery)
Sensor: 160g
Output
Sound Pressure Value
Sound Pressure Average
Sound Pressure Maximum
Data Output
USART

Die Bonder

DBX-1000 fully automatic Epoxy Die Bonder. Provides high speed, high accuracy and user-friendly operation


Wire Bonder

Further stability for greater productivity with Kaijo’s extreme high-tech Wire Bonder
