Quava Mini Ultrasonic Generator

Kaijo quava mini ultrasonic generator

Small and versatile, Kaijo’s Quava Mini table-top ultrasonic generator system provides a wide range of frequencies in one unit. Choose the lower ultrasonic frequencies (26 kHz -160 kHz) for bulk cleaning applications. Advanced system technology provides precise control of power input to the transducer which is also shown on the LED display. Ultrasonic transducers for different frequency ranges can be easily changed. The Quava Mini is also offered with optional recipe software to provide precise automated control.

Benefits

Features

Kaijo-quava-mini-ultrasonic-generator-tanks

Quava Mini Tanks

Kaijo-quava-mini-ultrasonic-generator-tank-assembly

Quava Mini Tank Assembly



Quava Mini Ultrasonic Generator Specifications

Model
QUAVA Mini
High Frequency
QUAVA Mini
Low Frequency
Model Number
30110(QR-003)
30110(QR-001)
Frequency
200/430/950 kHz 1.6 MHz
26/78/130 kHz
38/100/160 kHz
Output
1 – 100 W
1 – 50 W
Output Adjustment Range
0.1 W
Power Source
AC 100 – 240 V
Outer Dimensions (mm)
218(W) x 258(D) x 138(H)
Weight
4.6 kg



Transducer Unit

Frequency Model Model
26・78・130 kHz Multi 30201V
38・100・160 kHz Multi30301VS
200 kHz
30600S
430 kHz
>30700S
950 kHz
30800S
1.6 MHz
30900S
Outer Dimensions (mm)
140(W) x 140(D) x 108(H)
Material
SUS
Inlet/Outlet
2 Ports, 10 mm



Outer tank unit

Model
4260720
4260721
Material
PVC
Glass
Outer Dimensions (mm)
140(W) x 140(D) x 150(H)(*inner : 100(W) x 100(D) x 150(H))

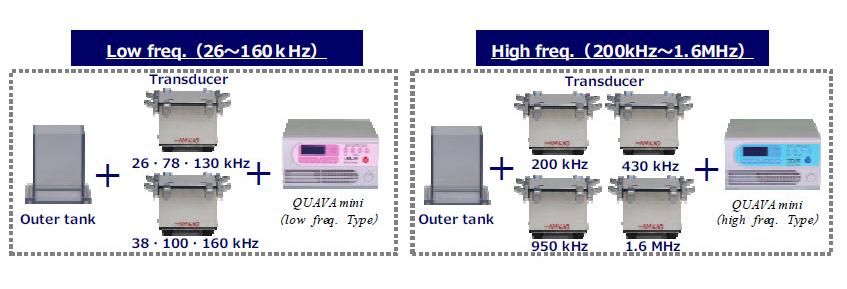

quava mini ultrasonic generator frequencies

Quava Mini Ultrasonic Generator Frequencies
