Ultrasonic Cleaning System: Phenix III Turn Key

ultrasonic cleaning system

Phenix III Turn Key Ultrasonic Cleaning System

Kaijo’s Phenix III Turn Key Ultrasonic Cleaning System consists of our most cost effective ultrasonic generator, the Phenix III and a static polished stainless steel tank. The high reliability Phenix III may be used in sweep or fixed frequency modes. The gloss polished stainless steel tank is 3 mm thick to provide superior ultrasonic conditions. The system provides effective and precise cleaning for a wide variety of industrial applications. If you have questions about how this system can be used for your specific application and want a free consultation or quote, call us at 408 675-5575.

Benefits:

Features:

Recommended Accessories:

The Kaijo Water Resonance System called “WRS and WRS-F”, conditions the cleaning liquid to drastically increase the ultrasonic cleaning effect.



Ultrasonic Cleaning System Generator Specifications

Generator Model
63113
64113
73113
74113
Max Output Power
600W
1200W
Frequency
26 kHz+-15%
38 kHz+-15%
26 kHz+-15%
38 kHz+-15%
Mode
Normal/AFS (Automatic Frequency Sweep) / FFS (Fixed Frequency Selection)
Adjusted Output
10 Step Switching (external Control Available) 10%, 20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%, 100%
Power Source
Single Phase 50/60Hz AC200V, AC208V, AC230V, AC240V (Selectable)
Current
6A
10A
Ambient Temperature
0 – 40 Deg C
Humidity
0-80% (No condensation)
Accessories
Remote Terminal, Interlock Terminal, Alarm Terminal, Ready Terminal, Go Terminal
Outer Dimensions in mm
350 (W) x 440 (D) x 165 (H)
Weight
10kg

Choose your tank size, frequency and power level from the chart below or contact us for custom sizes and options. Choose 26kHz or 38kHz, 600 or 1200 watts.

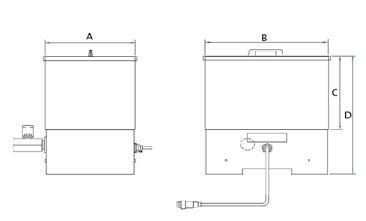

Ultrasonic Cleaning System Tank Front View
Ultrasonic Cleaning System Tank Top View

ultrasonic cleaning system tank engineering drawing



Ultrasonic Cleaning System Generator and Tank Sets: Phenix III

38 kHz
Model
Power
Width
A (mm)
Length
B (mm)
Tank Height C (mm)
Total Height D (mm)
CA-64801VS III
600 Watts
270
370
250
402
CA-74801VS III
1200 Watts
405
430
250
402
CA-74802 VS III
1200 Watts
520
550
300
452
26                                                                   kHz
Model
Power
Width
A (mm)
Length
B (mm)
Tank Height C (mm)
Total Height D (mm)
CA-6353VS III
600 Watts
270
370
250
402
CA-6359VS III
600 Watts
340
480
250
402
CA-7359VS III
1200 Watts
430
450
250
402

If you have any questions about our Phenix III Turn Key Ultrasonic Cleaning System or want a free consultation on how our products can be used for your application call us at 408 675-5575 or email info@kaijo-shibuya.com.
