Ultrasonic Cleaning Tanks

ultrasonic cleaning tanks

Ultrasonic cleaning tanks hold the cleaning liquid which cleans parts and components through the action of cavitation bubbles generated from the ultrasonic sound waves. When an ultrasonic generator produces the electric signal the transducers within the tanks convert that signal into waves within the cleaning liquid. The part being cleaned is suspended in the tank and immersed in the cleaning solution and the cavitation bubbles created by the transducers removes all surface contamination. Typical cleaning cycles can take 10-15 minutes and even parts with complex shapes can be cleaned effectively and thoroughly.

Ultrasonic cleaning tanks need to withstand the cleaning action and vibrations created by the transducers and they have to be constructed to satisfy many different cleaning requirements. Kaijo’s tanks use high quality construction and provide reliable and effective cleaning performance.

Ultrasonic Cleaning Tanks Design and Construction

Kaijo’s tanks are designed to provide high reliable performance for wide variety of industrial cleaning applications. They are made of thick gloss polished stainless steel which provides a stable structure for use with either mounted or stand alone immersible transducers and function as an inert container for the cleaning liquid. Kaijo can supply specific tanks designed to work with their full product line of ultrasonic generators and transducers to meet the specific requirements of the cleaning application.

Ultrasonic cleaning tanks need to be sized to hold the parts for the cleaning application. Parts are usually suspended in a basket to avoid contact with the sides or bottom of the tank where they could suffer damage due to vibrations. The basket has to be large enough to hold the parts to be cleaned and also fit within the tank.

Tanks are available in both standard as well as custom sizes. The standard sizes range from 270 mm width by 370 mm length (10.6 in. x 14.6 in.) with with a height of 250 mm (9.8 in.) up to 520 mm width by 550 mm length (20.5 in. x 21.7 in.) with a height of 300 mm (11.8 in.). All tanks are gloss polished stainless steel 3mm (0.12 in.) thick and provide superior support for all ultrasonic cleaning applications.

Ultrasonic Cleaning Tank Operation

Kaijo’s tanks are available with mounted transducers and generators that operate at 26 kHz, 38 kHz, 78 kHz, 100 kHz, 130 kHz, 160 kHz or 200 kHz. These ultrasonic cleaning tanks are complete systems that deliver effective robust cleaning action and typically clean most parts within 10-15 minutes.

Kaijo’s high performance Phenix III generator can be combined with any of Kaijo’s ultrasonic cleaning tanks and mounted transducers to provide a cost-effective turnkey system. This equipment combination can clean glass, ceramics, machined parts as well as printed circuit boards and medical devices.  The transducers within the cleaning tank are heat resistant up to 100 degrees Centigrade, and Kaijo’s Water Resonance System may also be used to substantially increase cleaning effectiveness.

Ultrasonic tanks can operate using either plain or distilled water, but adding a mild detergent and/or heating the cleaning solution with an optional tank heater can speed up cleaning performance for certain kinds of contaminants. This is especially true for oil, greasy contaminants that soften at higher temperatures and may be dissolved by the use of mild detergents.

Benefits:

Features:



Ultrasonic Cleaning Tank with Generator



Select a tank size from the chart below or contact us for custom sizes and options.

Cleaning Tank Front View
Cleaning Tank Top View

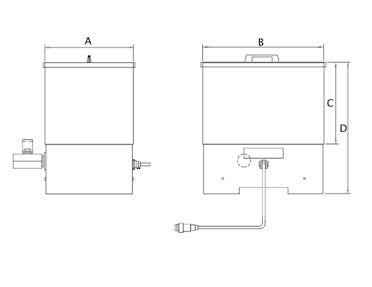

Ultrasonic Cleaning Tanks Engineering Drawing

ultrasonic cleaning tank engineering drawing

Ultrasonic Tank Sets with Generator

38 kHz
Model
Power
Width
A (mm)
Length
B (mm)
Tank Height C (mm)
Total Height D (mm)
CA-64801VS III
600 Watts
270
370
250
402
CA-74801VS III
1200 Watts
405
430
250
402
CA-74802 VS III
1200 Watts
520
550
300
452
26 kHz
Model
Power
Width
A (mm)
Length
B (mm)
Tank Height C (mm)
Total Height D (mm)
CA-6353VS III
600 Watts
270
370
250
402
CA-6359VS III
600 Watts
340
480
250
402
CA-7359VS III
1200 Watts
430
450
250
402

If you have any questions about using Kaijo’s Ultrasonic cleaning tanks or need more information on which products should be used for your specific application call us for a free consultation or quote at 408 675-5575 or email [email protected]
