Quava Mini Megasonic Cleaning System

mini megasonic cleaning system

Compact and versatile, the table-top Quava Mini Megasonic cleaning system provides multiple frequencies in one unit. The use of Megasonic frequencies (200kHz -1.6 MHz) provides for the most precise cleaning applications. Advanced system technology within the Quava Mini system gives precise control of power input to the transducer that is shown on a LED display. Transducers for various frequency ranges can be easily used.

The Quava mini system also provides optional recipe software that allows for more precise automation and control for your application. If you have any questions about the Quava Mini Megasonic cleaning system or need more information on how our products can be used for your application call us at 408 675-5575.

Benefits:

Features:

Quava Mini Tanks
Quava Mini Tank Assembly



Quava Mini Megasonic Cleaning System Specifications

Model
QUAVA Mini
High Frequency
QUAVA Mini
Low Frequency
Model Number
30110(QR-003)
30110(QR-001)
Frequency
200/430/950 kHz 1.6MHz
26/78/130 kHz
38/100/160 kHz
Output
1 – 100 W
1 – 50 W
Output Adjustment Range
0.1 W
Power Source
AC 100 – 240 V
Outer Dimensions (mm)
218(W) x 258(D) x 138(H)
Weight
4.6kg



Transducer Unit

Frequency Model
26・78・130 kHz Multi 30201V
38・100・160 kHz Multi
30301VS
200 kHz
30600S
430 kHz
>30700S
950 kHz
30800S
16 MHz
30900S
Outer Dimensions (mm)
140(W) x 140(D) x 108(H)
Material
SUS
Inlet/Outlet
2 Ports, 10 mm



Outer tank unit

Model
4260720
4260721
Material
PVC
Glass
Outer Dimensions (mm)
140(W) x 140(D) x 150(H)(*inner : 100(W) x 100(D) x 150(H))

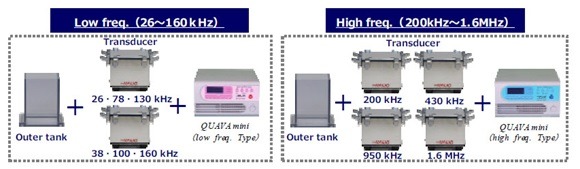

Quava Mini Megasonic Cleaning System frequencies

Quava Mini Megasonic Cleaning System Frequencies

If you have any questions about our Quava Mini Megasonic Cleaning System or need additional information on using our products for your application call us at 408 675-5575 or email info@kaijo-shibuya.com.
