Kaijo’s Industrial Ultrasonic Generator Phenix+
Kaijo’s new Phenix+ industrial ultrasonic generator brings ultrasonic cleaning control to new level. The highly efficient Phenix+ produces up to 1200 watts of output power while consuming no more than 7 amps of line power. Even the cooling fan is controlled to run only when needed. The high brightness LCD touch screen display allows a user to enter process parameters and monitor real time operations.
The Phenix+ generator’s compact size and lightweight make it prefect for system integration. To enhance precision cleaning and efficiency, a user may program the power level as well as the frequency sweep spread. High and low alarm settings are also available. The auto-tuning function is so sophisticated, a user can change the transducer array with no outside technical support. Simply plug in the new transducer array and run the auto tune function. The Phenix+ provides high quality and reliable industrial equipment at competitive pricing. Consult with a Kaijo representative to determine the optimum setup for your specific cleaning application, or for a quote, call 408 675-5575.
Benefits:
- High quality and reliable industrial equipment at competitive pricing
- Auto calibration and auto tuning functions allows a user to maintain high efficiency even when changing load conditions
- No field calibration needed for simple replacement
- Easy to understand error messages displayed as written text
- Adjustable sweep frequency for process flexibility
- Timer function for repeatable manual operation
- Energy efficient design, saves operating cost
- Improved cooling, the cooling fan runs only when needed
- Adjustable alarm limits to warn a user of power drift or loss
- Remote control operation and monitoring for ease of integration
Features:
- Touch Screen Control and Monitor with numeric keyboard
- Powerful 600 or 1200 watts maximum at Phenix+ Frequencies 26kHz or 38kHz
- Adjustable sweep level
- Compact, lightweight packaging
- Auto Calibration to your load conditions
- Auto Tuning for repeatable, efficient output.
- Provides four output program steps, programmed in 1 watt increments
- Error messages displayed as written messages
- Timer function for repeatable manual operation
- Remote control
- Aggressive cleaning with up to 1200 watts per generator at 26kHz or 38kHz
- Four types of oscillation, PLL, Sweep Frequency, Pulse Mode, Power Set
- Works with all Kaijo standard or custom transducer arrays
- Lightweight, Compact design
- Sleek metal finish
Touch Panel Control
Operations can be carried out using the touch panel
Frequency Modulation Mode
Frequency modulation mode (FM mode) is a standard feature
External Control Function
Monitoring of Upper Limit/Lower Limit Output
Setting of upper limit / lower limit (Strict)
Advantage: Changes in the cleaning environment and in the characteristics of the transducer (aging, etc.) can be detected.
Disadvantage: when the fluctuation of the cleaning environment is large, it is mistakenly detected as an error.
Setting of upper limit / lower limit (Swiftly)
Advantage: It is possible to avoid the false detection of errors even when the cleaning environment changes considerably
Disadvantage: Changes in cleaning environment and transducer characteristics are difficult to find.
Operation of the Cooling Fan
Splashes of washing liquid etc. due to work tend to adhere to the front,
Increase the life of the cooling fan by sucking air from the bottom.

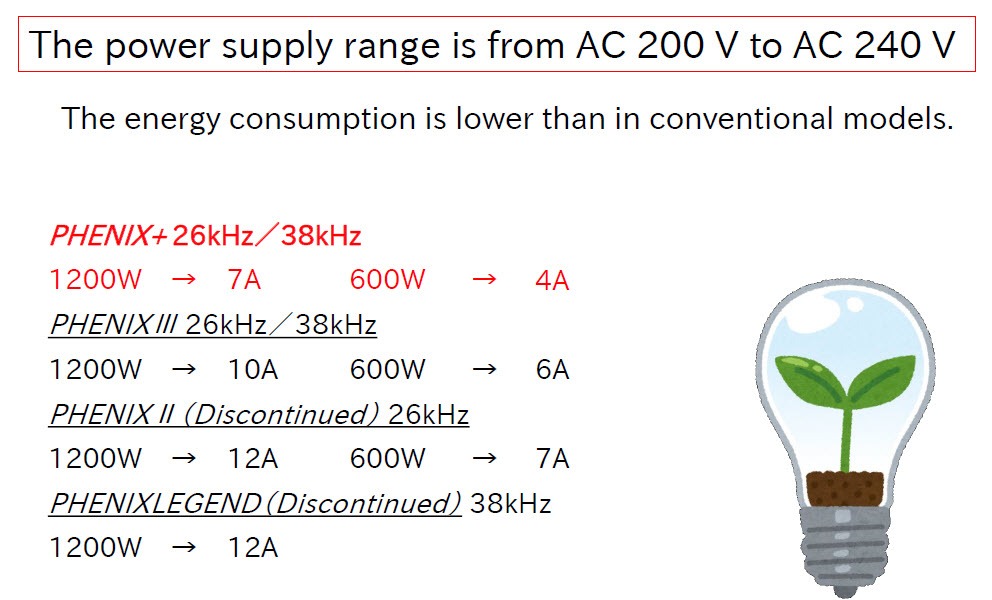

Power Supply
Phenix+ Industrial Ultrasonic Generator Specifications
| Series Name | Phenix+ | |||
|---|---|---|---|---|
| Model | 74120 | 64120 | 73120 | 63120 |
| Output Power | 1200 watts | 600 watts | 1200 watts | 600 watts |
| Frequency | 38kHz ±15% | 26kHz ±15% | ||
| Oscillation Type | Standard PLL, Frequency Modulation, Fixed Frequency | |||
| Power Source | AC200-240V, 1Φ, 10A, 50/60Hz | |||
| Remote Operation | Closed contact-ON, 4-step Output (each oscillation mode), Alarm Signals | |||
| Display System | Color Liquid Crystal / Touch Screen Display | |||
| External Dimensions in mm | 335（W) × 350（D) × 165（H) | |||
| Weight | 9.5kg | |||
If you have any questions about the Phenix+ Industrial Ultrasonic Generator or need more information about using it for your cleaning application contact us for a free consultation or quote.
