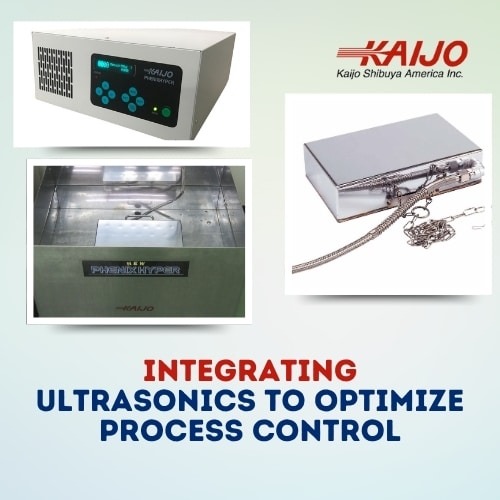

Integrating Ultrasonics to Optimize Process Control

Summary: Integrating ultrasonic cleaners into manufacturing operations increases process efficiency, minimizes contamination, and delivers measurable cost savings using advanced cleaning technology.

Table of Contents

1. Introduction: Ultrasonics in Modern Industrial Operations
2. Why Integrate Ultrasonics into Your Workflow?
3. Understanding Ultrasonic Cleaning Technology
4. Steps to Easy Integration of Ultrasonic Systems
5. Improving Process Efficiency with Ultrasonic Cleaners
6. Maintenance and Troubleshooting Best Practices
7. Measuring Success: Key Performance Indicators
8. Why Choose Kaijo’s Systems?
9. Conclusion and Next Steps

1. Introduction: Ultrasonics in Modern Industrial Operations

Industrial operations require technologies that deliver both cost savings and high process reliability. Integrating ultrasonic generators and systems into cleaning processes is a proven solution. Large-scale implementations have shown substantial gains: a Braskem heat exchanger study recorded annual savings of $1.6 million per unit, saved $2.18 million on associated systems, cut water usage by 90%, and achieved cleaning cycles 50% faster than traditional hydroblasting (source: heatexchanger-fouling.com).

Manufacturers in sectors such as semiconductor fabrication, automotive, and aerospace now rely on ultrasonic cleaning technology to meet strict standards. These systems directly lower operational costs and minimize contamination risks while increasing process reliability. The right ultrasonic generator setup enables cost-effective, high-quality production—demonstrating measurable value across diverse industrial workflows.

Process engineers across industries are discovering that strategic integration of ultrasonic technology directly translates to:

• Reduced operational costs through decreased chemical usage and faster processing times
• Enhanced process reliability with consistent cleaning results
• Improved product quality through superior contamination removal
• Minimized environmental impact with reduced water and chemical consumption

The versatility of ultrasonic cleaning technology spans multiple sectors, including aerospace components that require precision cleaning, automotive parts that demand contamination-free surfaces, and semiconductor wafers that need particle-level cleanliness.

2. Why Integrate Ultrasonics into Your Workflow?

Process engineers face ongoing challenges with quality control, contamination, and equipment reliability. By integrating ultrasonic cleaners, these critical pain points are addressed with precision and efficiency.

Direct Benefits for Manufacturers:

• Superior Quality Control: Ultrasonic cleaning delivers consistent, repeatable results, eliminating operator-dependent variability and protecting delicate components.
• Effective Contamination Reduction: The advanced cavitation process thoroughly removes particulates, organic residue, and films—even from complex and hard-to-reach surfaces.
• Maximized Reliability and Uptime: Automated cleaning cycles cut cleaning time by up to 70%, significantly reducing production downtime and increasing capacity without extra equipment investment.
• Cost and Safety Advantages: Reduced chemical usage, simplified waste management, and less manual handling lower operational costs and improve worker safety.

Process engineers implementing ultrasonic cleaning technology see rapid, measurable improvements in process reliability, throughput, and end-product quality. By adopting this technology, manufacturers gain a lasting competitive advantage in terms of efficiency and cleanliness, making ultrasonic integration a logical step for future-focused operations.

3. Understanding Ultrasonic Cleaning Technology

Ultrasonic cleaning technology is built on the principle of acoustic cavitation. High-frequency sound waves create millions of microscopic bubbles that rapidly collapse, dislodging contaminants from surfaces with precision.

For process engineers, system effectiveness depends on three core elements:

• Ultrasonic Generators: The ultrasonic generator converts electrical energy into high-frequency signals, ensuring controlled, optimized cleaning action for every batch.
• Ultrasonic Cleaning Transducers:Ultrasonic cleaning transducers transform the generator’s electrical output into mechanical vibrations that produce uniform cavitation throughout the cleaning tank.
• Tank and Solution Design: The ultrasonic cleaning tank size, solution composition, and transducer placement are all critical for getting full cleaning coverage. Proper setup has a direct impact on throughput and surface quality.

Frequency Choice by Application:

Frequency	Typical Use Case
26–38 kHz	Heavy contamination, components made of hard materials
38–78 kHz	General, all-purpose cleaning
78–200 kHz	Fine cleaning, on softer metals, optics
430 kHz -2 MHz	Precision cleaning for semiconductors, fragile components

Process Variables for Optimization

Temperature Control
The temperature of the cleaning solution directly affects cavitation intensity and chemical activity. Most applications achieve optimal results between 50 °C and 65°C, although specific materials may require different temperature ranges.

Solution Selection
While ultrasonic energy provides mechanical cleaning action, appropriate solution chemistry enhances contaminant removal. Water-based solutions with surfactants often provide excellent results while minimizing environmental impact.

Time and Power Management
Cleaning time and power levels must strike a balance between thoroughly removing contamination and protecting components. Ultrasonic generators with programmable cycles allow precise control over these critical parameters.

Process engineers working with delicate components benefit from the precise control capabilities of modern ultrasonic systems. The ability to adjust power levels, frequency, and timing parameters ensures optimal cleaning without component damage, a critical consideration in high-value manufacturing applications.

4. Steps to Easy Integration of Ultrasonic Systems

Successful ultrasonic system integration begins with a structured, data-driven approach that focuses on minimal disruption and maximum operational benefits. For process engineers responsible for efficiency, quality, and innovation, these steps ensure measurable improvements:

1. 1. Analyze Current Processes and Set Objectives
      • Audit existing cleaning workflows to identify bottlenecks, downtime sources, and quality gaps.
      • Define clear metrics for improvement, such as reduced production time, contamination levels, and defect rates.
   2. Specify System Requirements
      • Select the right ultrasonic cleaning transducer, tank, and ultrasonic generator models based on component geometry, material, contaminant types, and batch size.
      • Consider tank dimensions, required frequency, and degree of automation for seamless integration into current workflows.
   3. Collaborate Across Teams
      • Engage plant managers, production teams, and maintenance staff early to ensure buy-in and smooth implementation.
      • Share case studies or success stories demonstrating cost savings, reduced cycle times, and improved product quality from similar projects.
   4. Pilot and Validate System Performance
      • Run controlled tests on genuine production parts to validate cleaning results, cycle time improvements, and compatibility with existing processes.
      • Document all critical parameters, including solution chemistry, frequency, and batch configurations for repeatability.
   5. Implement and Train
      • Develop clear, standardized operating procedures to maximize uptime and product consistency.
      • Provide targeted training for operators and technicians, focusing on troubleshooting, daily checks, and safety around the new system.
   6. Monitor KPIs and Optimize
      • Track key performance indicators post-integration: throughput, contamination rates, downtime, and overall equipment effectiveness.
      • Set up regular process reviews and continuous improvement cycles, making data-driven adjustments for sustained process efficiency.

By following these steps and leveraging the flexibility of ultrasonic solutions, process engineers can achieve measurable improvements in productivity and product quality while maintaining operational stability and minimizing disruptions during the adoption of new technology.

5. Improving Process Efficiency with Ultrasonic Cleaners

For process engineers seeking to enhance throughput, minimize downtime, and maintain product quality, integrating an advanced ultrasonic cleaner is a direct route to improved manufacturing performance.

Key Efficiency Gains with Ultrasonic Cleaning:

• Faster Cycle Times: Ultrasonic systems deliver cleaning cycles up to 70% faster than manual and mechanical processes, minimizing downtime and keeping production schedules on track.
• Batch Processing Advantages: Handle multiple parts at once, boosting throughput and operational flexibility.
• Consistent, High-Quality Results: Automated cleaning with ultrasonic cleaning removes human error and ensures reliable, repeatable outcomes, even for complex or delicate components.
• Reduced Rework and Defects: Superior contaminant removal directly lowers defect rates, reducing rework and warranty costs while increasing customer satisfaction.
• Labor and Chemical Savings: Automated processes require less manual labor and use fewer chemicals, significantly cutting operational expenses and freeing skilled employees for higher-value tasks.
• Operational Flexibility: Rapid cycle times and modular system design simplify adaptation to changing production requirements, supporting continuous improvement and process optimization.

By tracking productivity KPIs and leveraging the data-rich automation that ultrasonic cleaning provides, process engineers can demonstrate substantial improvements in process efficiency, product quality, and cost control—making ultrasonic integration a strategic asset for high-performance manufacturing.

Implementing ultrasonic cleaning technology can deliver dramatic, quantifiable improvements in production efficiency and cost control. The following table illustrates typical before-and-after results seen when manufacturers switch from traditional cleaning methods to using ultrasonic cleaners.

Metric	Before Ultrasonic Cleaning	After Ultrasonic Cleaning	Improvement
Cleaning Cycle Time	45 minutes per batch	12 minutes per batch	73% faster
Labor Hours per Week	30	10	67% reduction
Chemical Consumption	10 liters per day	3 liters per day	70% reduction
Defect/Rework Rate	3% of production	0.5% of production	83% lower
Water Usage	500 gallons per week	50 gallons per week	90% reduction
Energy Cost per Month	$950	$700	26% savings
Throughput (units/week)	800	2,100	163% increase
Annual Cleaning Cost	$48,000	$17,500	64% savings

6. Maintenance and Troubleshooting Best Practices

Sustained efficiency and minimal downtime are vital for process engineers responsible for manufacturing performance. Routine maintenance and rapid troubleshooting ensure your ultrasonic cleaning transducers and ultrasonic generator operate at peak performance, directly supporting consistent product quality and operational targets.

Proactive Maintenance Strategies

• Schedule daily and weekly checks: monitor cleaning solution levels, inspect transducers for wear, and verify controls for stable frequency and output.
• Implement monthly reviews: calibrate generator frequency, measure power output, inspect tank conditions, and test safety systems.
• Use checklists for all tasks to streamline operator training and ensure procedures are standardized.

Troubleshooting for Maximum Uptime

• Track and log any performance drops, abnormal noises, or extended cleaning times—early signals can prevent costly breakdowns.
• Address common issues:
  • Reduced cleaning power: clean or replace clogged or damaged transducers.
  • Inconsistent results: confirm proper generator frequency settings and solution quality.
  • Equipment alarms: investigate electrical connections and address maintenance alerts immediately.
• Keep a troubleshooting flowchart at hand for operators, covering symptom recognition, root cause identification, and escalation steps.

Empower Teams with Training and Documentation

• Provide regular training on maintenance routines, cleaning agent handling, and system troubleshooting.
• Maintain clear, accessible documentation, including maintenance logs, SOPs, and equipment manuals.

Use Data for Continuous Improvement

• Analyze maintenance and performance data to refine schedules, predict failures, and drive process optimizations that support KPIs such as uptime and defect rates.

A disciplined approach to preventive maintenance and troubleshooting ensures reliable operation, reduces unplanned downtime, and helps process engineers maintain the high standards required for modern manufacturing.

7. Measuring Success: Key Performance Indicators

Continuous improvement requires tracking the right metrics. For process engineers, establishing objective KPIs ensures that investments in process efficiency and ultrasonic cleaning technology deliver quantifiable results.

Key KPIs for Ultrasonic System Integration

• Throughput Improvement: Measure parts cleaned per hour and compare pre- and post-implementation rates to highlight productivity gains.
• Cycle Time Reduction: Monitor average cleaning times—ultrasonic systems often deliver 50–70% faster cycles versus manual or mechanical processes.
• Defect and Contamination Rates: Track reductions in failed quality inspections, rework cases, and surface contamination as direct business outcomes.
• Downtime Metrics: Analyze unplanned stoppages related to cleaning or equipment issues, aiming for measurable decreases in lost production time.
• Chemical and Utility Savings: Calculate cost reductions tied to decreased chemical, water, and energy consumption per batch.

Financial and Operational Impact

• Use comparative data and ROI calculations to demonstrate payback periods, cost-per-unit improvements, and ongoing operational savings.
• Implement dashboards or regular KPI reports to keep cross-functional teams aligned and quickly showcase improvements to stakeholders.

Supporting the Process Engineer’s Objectives

• Reliable metrics support efficient decision-making, ongoing optimization, and clear communication of value from ultrasonic cleaning investments.
• Tracking these KPIs not only justifies initial technology adoption but also highlights opportunities for further efficiency gains across production lines.

By focusing on objective, data-driven KPIs, process engineers can confidently validate the performance of ultrasonic cleaning systems and ensure sustained improvements in process efficiency and product quality.

8. Why Choose Kaijo’s Systems?

Choosing the right ultrasonic generator that provides the needed features is essential for process engineers who demand both immediate and long-term improvement in operational performance. Kaijo’s systems deliver reliability, innovation, and measurable results, making them a preferred choice for leading manufacturers.

Innovation Heritage and Proven Performance

• Continuous Innovation: Kaijo is recognized as a leader in ultrasonic cleaning technology, with decades of engineering advancements shaping our product line. Developments such as the Phenix Hyper and Phenix+ ultrasonic generators are engineered to set new standards for throughput, precision, and reliability.
• Unique Technologies: Proprietary features like the Water Resonance System (WRS) address the most complex industrial cleaning challenges—offering process engineers solutions where conventional systems do not succeed.
• Turnkey Solutions: The Phenix III Turn Key Ultrasonic Cleaning System simplifies implementation, removes integration challenges, and quickly puts efficient cleaning into production.

What Sets Kaijo Apart for Process Engineers

• Demonstrated Reliability: High-quality components and hermetic sealing extend equipment life and maintain process uptime, aligning with the need for consistent output and reduced downtime.
• Technical Superiority: Kaijo’s systems offer advanced frequency control, real-time power modulation, and adaptive cleaning profiles for unmatched process precision. The Phenix+ industrial ultrasonic generator features FM (Frequency Modulation) technology, which dynamically shifts frequencies to reduce standing waves and improve uniformity in cleaning results. For even more demanding applications, the Phenix Hyper ultrasonic generator introduces Hyper Wave technology, delivering high-energy, broadband performance ideal for removing submicron particles in precision manufacturing environments. These innovations provide process engineers with the control and versatility needed for high-yield, high-throughput operations.
• End-to-End Support: Experienced, in-house experts guide system configuration, deployment, training, and ongoing optimization, helping engineers like Mark Reynolds rapidly achieve targets for process efficiency and quality.

Documented Results and Business Value

• Proven reductions in cycle time, contamination, and chemical consumption.
• Comprehensive ROI analysis and side-by-side cost comparisons available to support internal buy-in and justify technology investment to leadership and cross-functional teams.
• Solutions designed for easy workflow integration and scalability to adapt as production requirements evolve.

With a legacy of innovation, robust product engineering, and responsive support, Kaijo partners with process engineers to drive efficient operations, deliver consistent product quality, and stay competitive in advanced manufacturing.

9. Conclusion and Next Steps

Integrating ultrasonic cleaners into your manufacturing workflow is a proven way to boost process efficiency, enhance product quality, and reduce operating costs, yielding measurable results such as shorter cleaning cycles, lower contamination rates, and decreased chemical consumption. Ultrasonic cleaning technology positions your facility for sustained improvement and a competitive advantage.

Process engineers benefit from Kaijo’s reliable performance, advanced features, and expert support, ensuring seamless adoption and a lasting impact on production KPIs. This technology supports your mandate to optimize operations, implement new solutions with minimal disruption, and deliver continuous value to your team and organization.

Ready to take the next step?
Contact Kaijo to request a free consultation with an ultrasonic technology expert who can discuss your specific application needs and provide recommendations for maximizing your ROI. Experience firsthand how Kaijo’s expert guidance and technology can transform your cleaning operations and support your goals for operational excellence.

FAQs: Top Questions About Ultrasonic Integration

Q1: How can ultrasonic integration specifically reduce manufacturing downtime?

Ultrasonic generatorsreduce cleaning cycles by 50-70% compared to traditional methods, completing equivalent cleaning in 3-15 minutes versus 30-60 minutes. The automated process eliminates complex manual procedures and integrates seamlessly with existing production lines, preventing workflow bottlenecks.

Q2: What is the ROI timeframe for ultrasonic system implementation?

Return on investment for ultrasonic cleaning systems typically occurs within 12-24 months through immediate cost savings in chemicals, labor, and utilities. Factors that accelerate ROI include high current chemical costs, significant manual labor requirements, and quality problems from contamination.

Q3: Can ultrasonic systems integrate smoothly with existing manufacturing equipment?

Yes, ultrasonic systems are specifically designed for seamless integration with standard conveyor interfaces, PLC communication, and existing utility connections. Kaijo’s application engineers work directly with process teams to ensure smooth integration through current state analysis, pilot testing, and comprehensive training.
