Optimizing Ultrasonic Cleaning on Parts with Complex Geometries

Precision and efficiency are critical in manufacturing, especially for parts with intricate designs or hard-to-reach areas. Ultrasonic cleaning systems have become an indispensable tool in this space, offering a reliable and effective way to maintain cleanliness and quality across many industries.

Precision cleaning is non-negotiable in the semiconductor, medical device, and automotive industries, where product performance depends on meeting strict quality standards. Cleaning intricate designs with hard-to-reach crevices presents a challenge that traditional methods, such as manual scrubbing, spray washing, or chemical soaking, cannot reliably solve. These outdated techniques often leave residue behind, risking contamination and reduced functionality.

Kaijo’s advanced ultrasonic cleaning technology provides a solution by using ultrasonic waves to deliver thorough, consistent cleaning. High-frequency sound waves remove even the most challenging contaminants from complex geometries with exceptional accuracy. Whether you are working with circuit boards, delicate medical tools, plastic molds, or industrial machine parts, ultrasonic cleaning ensures thorough results while improving efficiency and eliminating the inefficiencies of manual labor.

Why Ultrasonic Cleaning Is the Perfect Solution for Complex Geometries

Cleaning parts with intricate designs, tight crevices, or irregular surfaces can be a significant challenge for manufacturing operations. Traditional cleaning methods, such as manual scrubbing, spray washing, or chemical soaking, often fail to deliver thorough results. They may leave contaminants in hard-to-reach areas, risk damaging delicate materials, or require excessive time and labor.

Ultrasonic cleaning systems solve these challenges by using high-frequency ultrasonic waves to create microscopic cleaning bubbles. This cavitation process dislodges contaminants from tight crevices and irregular surfaces with remarkable precision, ensuring thorough cleaning without labor-intensive methods. It provides precision and consistency across every cleaning application, making it an essential tool for industries that demand high-quality results.

Key Advantages of Ultrasonic Cleaning for Complex Applications

• Precision cleaning for complex parts: Ultrasonic waves remove oils, residues, and microparticles from tight areas without damaging the surface. This level of precision is critical for maintaining consistent quality and ensuring optimal part performance.
• Uniform results across all applications: Unlike manual or less advanced methods, ultrasonic cleaning delivers consistent results regardless of a part’s shape or size. This eliminates variability and ensures each component meets strict cleanliness standards.
• Reduced time and costs: Automating the cleaning process reduces cycle times, minimizes manual labor, and lowers overall operating costs, increasing production efficiency and streamlining workflows.
• Gentle yet effective cleaning: For fragile components, such as optical lenses or semiconductor wafers, ultrasonic systems clean thoroughly without scratching or degrading delicate materials.

Tailored for Complex Geometries

Parts with intricate geometries, such as circuit boards, medical instruments, plastic molds, or components with deep cavities, pose unique cleaning challenges. Ultrasonic cleaning technology is engineered to address these obstacles:

• Reaches hidden areas: Cavitation cleans wherever the cleaning solution can penetrate, including areas that traditional methods cannot access, leaving no contaminants behind.
• Adaptable to many materials: Ultrasonic cleaning adapts to different materials and contamination levels, from stainless steel machine parts to ceramic medical devices.
• Scalable operations: Cleans small parts in batches or large components individually, depending on the application.

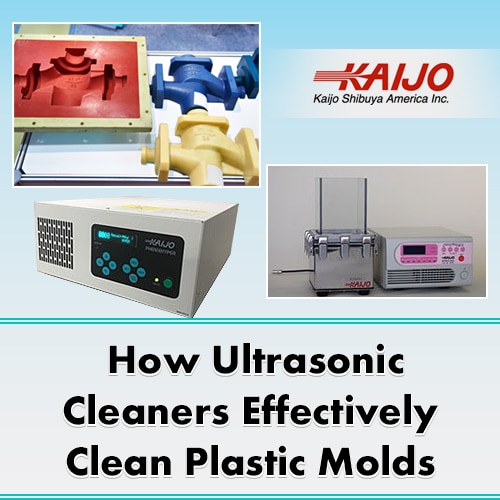

Application Spotlight: Cleaning Plastic Molds

Plastic molds are a clear example of a complex geometry that is hard to clean by hand. Manual scrubbing is labor-intensive and often misses contaminants in fine mold structures such as ejector pin holes, cooling channels, and vent paths. Because cavitation bubbles clean wherever the cleaning solution is present, ultrasonic cleaning reaches these features and removes contamination completely, without leaving residue.

Mold cleaning also runs without supervision: operators set a timer and return later to remove the clean molds. Frequency selection matters here, because a frequency that is too low can pit the mold surface or damage intricate structures. When the system is configured correctly for the application, ultrasonic cleaning is fast, environmentally friendly, and improves production line performance.

By addressing the challenges of cleaning complex geometries with precision, consistency, and efficiency, ultrasonic cleaning systems help achieve operational excellence while maintaining the highest product quality standards.

How Ultrasonic Cleaning Works

Ultrasonic cleaners rely on high-frequency sound waves and their interaction with cleaning solutions. This technology removes contaminants effectively while protecting the structural integrity of intricate or delicate parts.

At its core, ultrasonic cleaning operates through a process called cavitation:

1. Ultrasonic frequencies: High-frequency sound waves, typically ranging from 20 kHz to 200 kHz, are generated by an ultrasonic transducer and transmitted through a cleaning solution.
2. Cavitation process: The sound waves create millions of microscopic bubbles in the cleaning liquid. These bubbles rapidly form and collapse in step with the ultrasonic frequency, releasing bursts of energy that dislodge contaminants from surfaces, including tight crevices and hard-to-reach areas.
3. Cleaning solution: A specialized liquid, often water combined with mild detergents or cleaning agents, enhances the cavitation effect, ensuring maximum dirt and residue removal.

The Role of Ultrasonic Cleaning Tanks

Ultrasonic cleaning tanks are integral to the process, serving as the environment where cleaning takes place:

• Transducers: Mounted on the tank’s walls or immersed in the solution, transducers convert electrical energy into ultrasonic waves, which initiate the cavitation process.
• Part placement: Components are submerged in the cleaning tank, where the ultrasonic waves clean every visible and hidden surface. Fixtures or baskets can organize parts and promote even cleaning.

Why It’s Effective

This method dislodges contaminants such as oils, grease, dirt, and microscopic debris without abrasives or harsh chemicals. Whether dealing with rugged machine parts or delicate semiconductor wafers, ultrasonic cleaning offers a thorough, non-damaging solution that works across a wide range of materials and geometries.

Essential Factors for Optimizing Ultrasonic Cleaning

Achieving the best results with ultrasonic cleaning systems requires a tailored approach that matches the specific materials, contaminants, and geometries being cleaned. Frequency, power, and cleaning solution choice significantly affect performance. These are the essential elements to consider:

1. Selecting the Correct Frequency

Frequency is critical to balancing cleaning strength and material protection.

• Lower frequencies (20–40 kHz): Best for durable parts made of harder metals and materials with heavy contamination, such as automotive and industrial components. The larger cavitation bubbles created at lower frequencies provide intense cleaning action to remove grease, oil, and grime.
• Mid-range frequencies (60–200 kHz): Suited to less robust parts and softer metals and materials, such as aluminum, LCDs, medical instruments, and circuit boards. Mid-range frequencies create bubbles that deliver gentler cleaning, keeping the part’s surface intact.
• High frequencies (430 kHz–2 MHz+): Provide precise cleaning of delicate parts and very soft materials, such as semiconductor wafers, electronic components, and delicate medical instruments. High frequencies create the smallest bubbles, delivering gentle, precise cleaning so delicate parts are not damaged.

Getting the frequency wrong in either direction has a cost. If the frequency is too low, the energetic bubbles may pit the part surface or damage intricate structures. If it is too high, cleaning takes longer, and performance may suffer. Choosing the right frequency for the material ensures contaminants are removed safely and effectively.

2. Adjusting Power Settings

Power output dictates the cleaning intensity:

• High power: Ideal for sturdy items that need intense cleaning to remove tough debris or buildup.
• Low power: Ensures delicate components are cleaned effectively without risking damage from excessive vibration energy.

The system must also have enough power to fill the entire cleaning tank with ultrasonic energy. Depending on tank size, several built-in or immersible transducers may be required, and the ultrasonic generator must have enough power to drive them all. This is especially important for large tanks, such as those used to clean entire molds. Adjustable power settings then allow manufacturers to fine-tune cleaning intensity for specific parts and applications.

3. Choosing the Right Cleaning Solution

Cleaning solutions should enhance cavitation and match the contaminants:

• Grease and heavy oils: Use alkaline or degreasing solutions that break down tough residues. Heating the cleaning solution also improves performance on oily or greasy deposits.
• Hard-to-remove contamination: Adding a mild detergent to the cleaning solution can speed up the cleaning process.
• Microscopic particles and general contaminants: Neutral or mild detergents are effective for sensitive materials such as ceramics, silicon wafers, and optical components.

The cleaning solution must also be compatible with the material to avoid corrosion or unwanted chemical reactions. Because cavitation does most of the cleaning work, strong chemicals are rarely required. Avoiding aggressive chemicals eliminates the cost of purchasing, storing, handling, and disposing of them, creates no hazardous waste, and improves workplace safety. An experienced ultrasonic cleaning supplier can help select the right detergent and determine the ideal operating temperature.

4. Material-Specific Considerations: Sturdy vs. Delicate Parts

Ultrasonic cleaning systems can handle both sturdy and fragile components, but their settings must be adjusted to the material type:

• Heavy-duty parts: Low-frequency, high-power settings are suitable for removing robust contaminants from durable materials such as stainless steel or industrial tools.
• Fragile components: High-frequency, low-power settings ensure safe and effective cleaning of delicate surfaces, such as medical tools or electronic components.

Optimizing these factors ensures thorough, safe, and efficient cleaning, reducing labor and maintaining high-quality results for any application.

Steps for Enhancing Cleaning Effectiveness

Specific best practices improve cleaning precision, consistency, and efficiency, maximizing ultrasonic cleaning system performance while protecting component integrity.

1. Proper Placement of Parts in the Cleaning Tank

Positioning parts correctly in the ultrasonic cleaning tank is crucial to even cleaning. Components should not overlap or touch, as this can create shadow areas where ultrasonic waves are less effective.

• For intricate designs, orient parts so hard-to-reach areas are exposed to the cleaning solution.
• Space parts evenly to allow optimal cavitation across all surfaces.

2. Utilize Fixtures or Baskets

Baskets or custom fixtures keep parts in the proper orientation during cleaning, improving consistency. Fixtures also prevent delicate parts from moving within the tank, reducing the risk of damage.

3. Optimize Cleaning Cycle Times

Determine the appropriate cleaning time based on the level of contamination and the part material:

• Shorter cycles: Adequate for lightly soiled components, reducing cleaning time and energy consumption.
• Longer cycles: Necessary for stubborn contaminants, but avoid excessive durations to maintain efficiency.

Because ultrasonic systems clean without monitoring, operators can set a timer for the chosen cycle and return to remove the clean parts. Regularly evaluate cycle times to balance thorough cleaning with production speed.

4. Adjust Frequency and Power Appropriately

Matching ultrasonic frequency and power settings to the part’s material is essential. For delicate items, higher frequencies with lower power avoid surface damage. For robust, hard materials, lower frequencies with higher power increase cleaning effectiveness.

Benefits for Engineers and Manufacturers with Kaijo’s Phenix Series

Kaijo’s Phenix Series ultrasonic systems, including the Phenix+ and Phenix Hyper, are designed to address the unique cleaning challenges modern industries face. These systems combine advanced technology with reliability, delivering precise, efficient cleaning for intricate and large-scale applications.

1. Precision Cleaning for Complex Geometries

The Phenix Series removes contaminants from hard-to-reach areas without damaging delicate parts. Whether cleaning intricate circuit boards, plastic molds, or fragile medical tools, these systems deliver consistent results with exceptional accuracy.

2. Customizable Features

The Phenix+ and Phenix Hyper offer adjustable power and frequency settings that can be fine-tuned for a wide range of materials and contaminants. This flexibility allows manufacturers to optimize cleaning for robust industrial parts and delicate components such as semiconductors or optical lenses.

3. Enhanced Productivity

Kaijo’s Phenix Series systems reduce manual labor, shorten cleaning cycle times, and increase throughput by automating the cleaning process, streamlining workflows and helping manufacturers meet production demands.

4. Durable and Reliable Design

Engineered for long-term performance, the Phenix+ and Phenix Hyper systems require minimal maintenance, reducing downtime and ensuring consistent operation for critical cleaning tasks.

5. Cost Efficiency

Kaijo’s Phenix Series ultrasonic systems lower operating costs by minimizing waste, extending the lifespan of critical parts, and reducing rework, making them a valuable investment for improving manufacturing efficiency while maintaining high quality standards.

Conclusion and Next Steps

Ultrasonic cleaning systems provide an unbeatable solution for industries facing the challenge of cleaning intricate geometries and sensitive components. Kaijo’s systems deliver precision, consistency, and efficiency across a wide range of applications, whether the goal is removing stubborn contaminants, improving throughput, or ensuring delicate parts remain undamaged.

Kaijo’s Phenix+ and Phenix Hyper ultrasonic systems are reliable, customizable, and cost-effective tools for even the most complex cleaning tasks. Kaijo’s ultrasonic experts analyze each customer’s application, recommend system parameters such as frequency and power, and configure the system to match the requirements, including determining the power needed for large tanks that clean entire molds. They also advise on cleaning solution temperature, cleaning cycle times, and detergent use.

If you want to optimize your cleaning processes while maintaining the highest quality standards, Kaijo has the expertise and technology to help. Contact Kaijo today for a free consultation to see how ultrasonic cleaning can reduce costs and improve your cleaning results.
